Two Container Code Recognition Process Types
At Industrial Cortex (ICX), our Container Code Recognition System can be deployed in two different camera architectures depending on the project environment, operational flow, and inspection requirements:
- Area Camera Process
- Line Scan Camera Process
Both approaches are designed to support automated container inspection and identification, while providing valuable operational data such as:

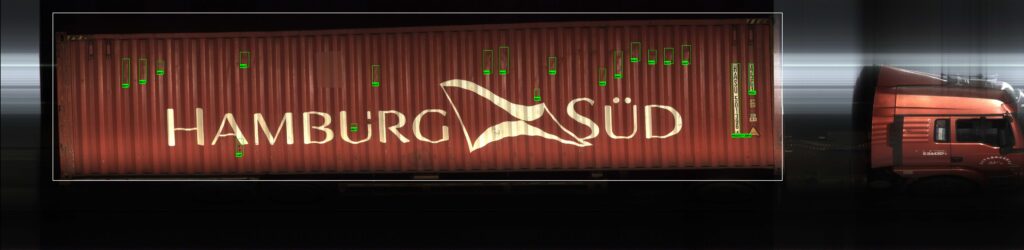

- Container Code Recognition
- Type Code Recognition

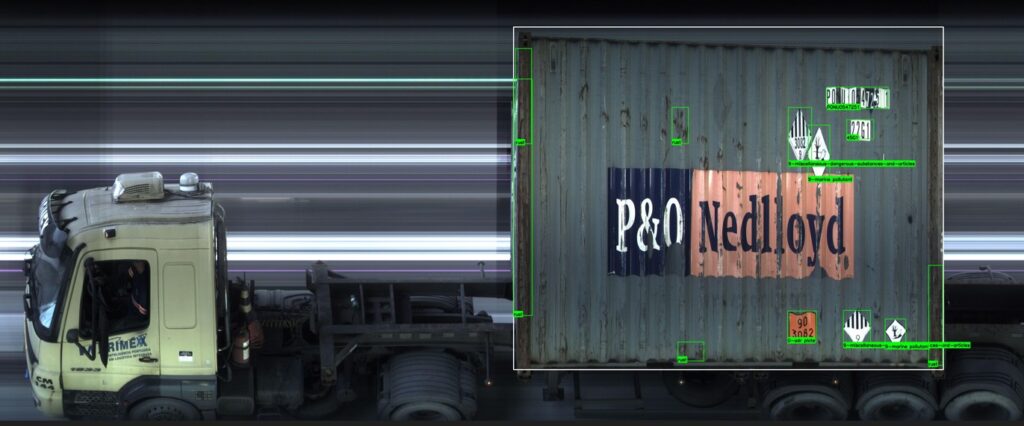

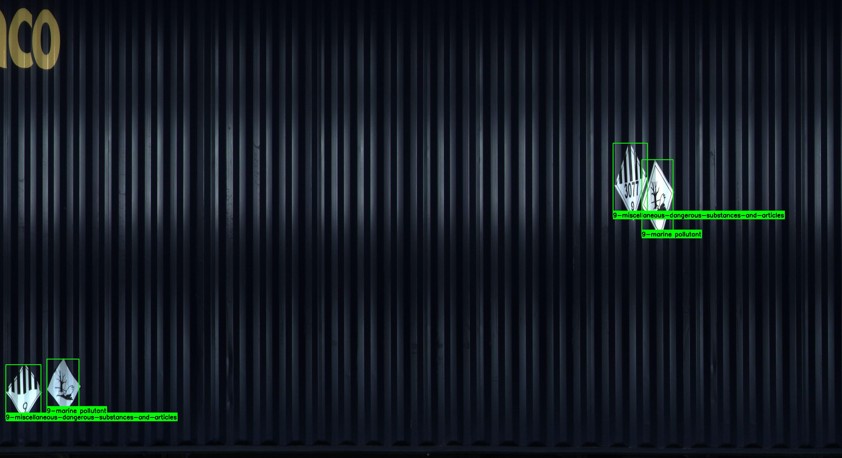

- Hazardous Material Placard Detection
- Seal Detection
- License Plate Recognition
For projects requiring extended inspection capabilities, the Line Scan Camera Process can also support container damage detection.

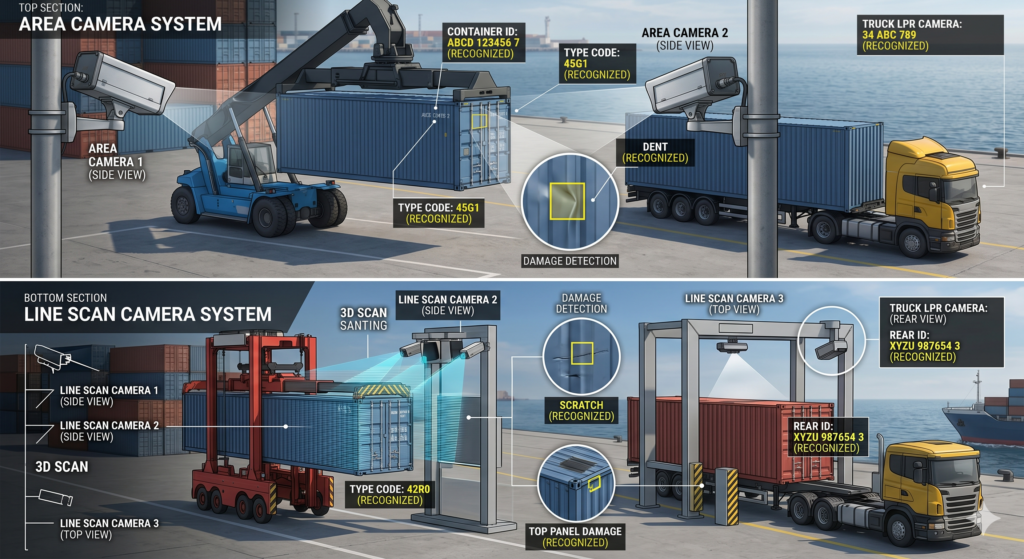

1. Area Camera Process
The Area Camera Process is a practical solution for sites where containers can be captured with standard area cameras from fixed viewpoints.
In this setup:
- Two area cameras are positioned on the left and right sides
- These cameras capture the side surfaces of the container
- A separate license plate recognition camera is positioned at the front of the truck
This process is well suited for applications where the main goal is to read visible container markings and collect key identification data during truck movement.
The Area Camera Process can provide:
- Container Code Recognition
- Type Code Recognition
- Hazardous Material Placard Detection
- Seal Detection
- Truck License Plate Recognition
Typical use cases:
- terminal entry and exit points
- logistics depots
- container yards
- customs-related checkpoints
- industrial gate automation
The Area Camera Process offers a simpler and effective architecture for many operational environments.
2. Line Scan Camera Process
The Line Scan Camera Process is designed for more advanced inspection workflows where a larger portion of the container must be scanned in detail.
In this setup:
- Two line scan cameras capture the two side surfaces of the container
- One top line scan camera scans the top side
- The rear side of the container is captured using an area camera
- A separate license plate recognition camera is positioned at the front of the truck
This architecture provides a broader inspection view and is especially useful when more detailed visual analysis is required.
The Line Scan Camera Process can provide:
- Container Code Recognition
- Type Code Recognition
- Hazardous Material Placard Detection
- Seal Detection
- Container Damage Detection
- Truck License Plate Recognition
Typical use cases:
- ports and terminals
- high-throughput inspection lanes
- customs control points
- security-focused container inspection systems
- projects requiring damage analysis
Because line scan systems can generate highly detailed container imagery, they are particularly useful for projects that require both identification and condition assessment.
Choosing the Right Process
The choice between Area Camera and Line Scan Camera depends on several factors:
- inspection depth required
- site layout
- vehicle movement flow
- operational speed
- safety and customs requirements
- whether damage detection is needed
For many standard identification tasks, the Area Camera Process provides a strong and efficient solution.
For more advanced inspection scenarios, the Line Scan Camera Process offers a more detailed and powerful architecture.
At Industrial Cortex, we develop AI-powered container inspection technologies for real-world logistics and terminal environments.
Our systems are designed to support:
- operational automation
- safety workflows
- customs and security checks
- container identification
- visual inspection processes
